Industrial Automation
Vision-Guided Arms & Cobots

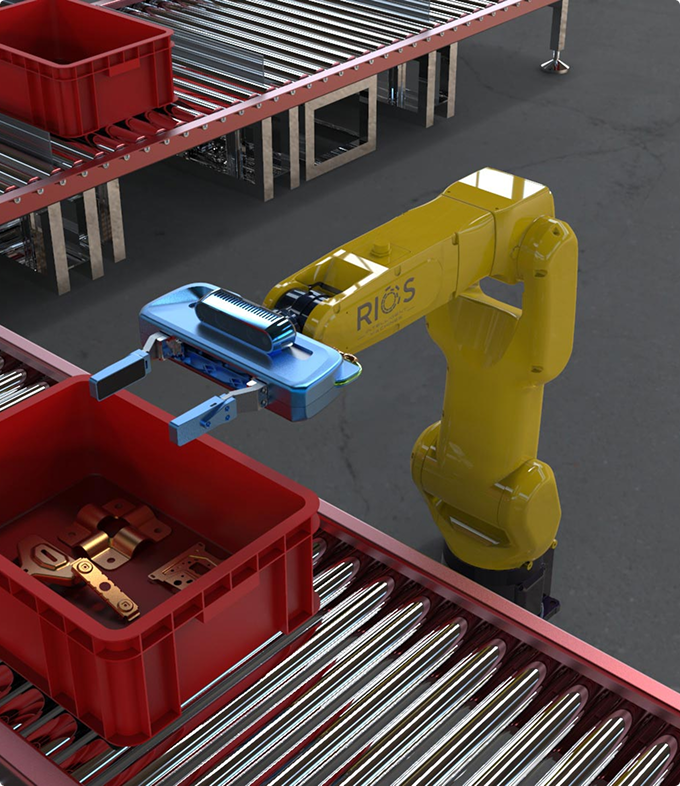

Bin picking, de-racking, fastening, dispensing, and work on moving conveyors have traditionally demanded rigid fixtures and precise indexing to compensate for a robot’s lack of perception — and every worn fixture, drifted part, or shifted bin turns into downtime, rework, or a stopped station. RealSense-guided systems flip that model: by aligning real-time 3D depth data with CAD models, a robot recognizes a part by its true spatial geometry rather than its surface appearance, so finish, reflectivity, and cleanliness stop being failure points. That geometry-first approach is what lets automation handle tasks — moving lines, cluttered pallets, mixed part variants — that rigid, appearance-based vision systems can’t keep up with, cutting the redesign and recommissioning cost of introducing a new part. Integrators building on RealSense report eliminating mechanical fixtures and staging areas outright: a camera that perceives objects dynamically in 3D space removes the need for the elaborate positioning infrastructure that bin picking and logistics applications traditionally required.
Real-Time Tracking & Pose Estimation
A robot that detects a part once and assumes nothing changes fails the moment a bin shifts or a conveyor keeps moving. RealSense depth data feeds continuous 6-DoF pose estimation and trajectory correction directly into the robot’s control loop, with perception-to-motion latency under 80 milliseconds — fast enough for true closed-loop control rather than detect-then-move. Mounting the camera on the robot itself, rather than fixing it to the station, keeps perception aligned with the tool center point, so the system sees exactly what the end effector is about to interact with and re-localizes continuously through the motion. For bin-picking applications specifically, a Tool Center Point calibration process aligns the camera to the robot’s coordinate system, so custom vision models can evaluate candidate grasp points against the live depth map and execute precise picks instead of relying on a part being staged in a known position. The result is tracking that holds up in scenarios that break traditional 3D vision — overlapping parts, mobile bins, compact stations with tight sightlines — and real-time positional feedback that eliminates “blind picking” in favor of consistent, verified component handling.
Dimensional & Spatial Measurement Across the Line
Point solutions that watch a single workstation miss the context that explains why it’s underperforming — a slow station is often constrained upstream, not broken itself. RealSense depth cameras deployed across an entire line build a structured, sub-2%-error spatial map of the floor at ranges from 0.5 to 8 meters, turning raw pixels into the kind of dimensional and positional data that identifies true bottlenecks, not just symptoms. A 10-centimeter stereo baseline extends that measurement range and accuracy far enough to capture full-body motion and complex assembly sequences, not just a fixed point in space. Because every camera shares the same spatial reference rather than reporting position relative to itself, insight scales from one workstation to a full production line without losing the ability to trace a defect or delay back to its actual source.
Safety & Ergonomic Monitoring
Manufacturing safety programs have long relied on stopwatches, audits, and periodic reviews — tools that catch problems after they’ve already cost someone an injury or a shift’s worth of throughput. RealSense-powered vision systems run continuous ergonomic monitoring and unsafe-motion detection without wearables, sensors, or interrupting the operator, converting raw depth data into an early warning for high-stress motions before they become incidents. Because the same 3D spatial data also captures how work actually deviates from standard — not just whether someone was in frame — supervisors get visual, moment-by-moment feedback instead of a delayed report, which drives faster correction than metrics alone. Depth-based monitoring scales across hundreds of stations on a single line without adding a single wearable device to the floor. That same spatial awareness is the prerequisite for genuine human-robot collaboration: by feeding real-time depth maps into a robot’s spatial-awareness layer, a cobot can track a person’s position relative to itself at any given moment, distinguishing collaborative work — supporting an operator on a complex or repetitive task — from a hazard requiring an immediate stop.
Robust Performance in Harsh Industrial Conditions
A vision system that needs a bright, static, dust-free environment doesn’t survive contact with an actual factory floor. RealSense cameras carry their own active infrared projector, delivering reliable depth perception independent of ambient lighting — including complete darkness — so a robot doesn’t need re-tuning or retraining every time a shift’s lighting changes. Because part recognition is driven by 3D geometry rather than visual appearance, reflective surfaces, partial occlusion, and inconsistent lighting stop being failure conditions; the depth data stays a stable geometric reference no matter what the surface looks like. Camera modules built into custom, industrial-grade housings extend that reliability to robot-mounted deployments, where vibration, cable stress, and constant motion would compromise a consumer-grade sensor within weeks. That same industrial fit shows up in how fast a system gets built, not just how long it survives: automation integrators standardizing on PoE-connected cameras like the D555 cite field of view, depth-map density, and integration speed as the deciding factors over competing depth-sensing hardware, delivering working applications in hours rather than days when a customer brings a non-standard request.
An Open Ecosystem: Controllers, Compute, and SDK

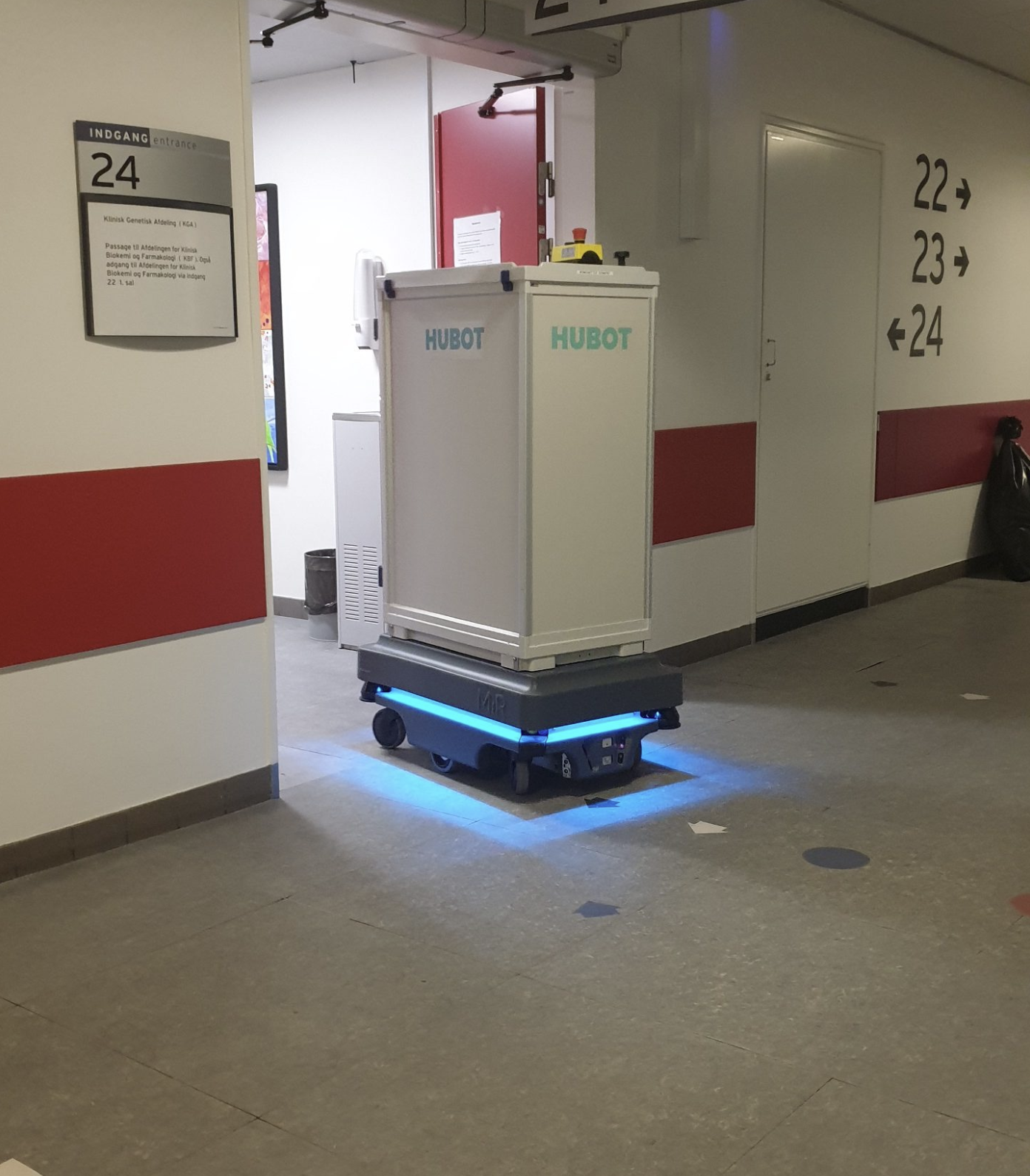

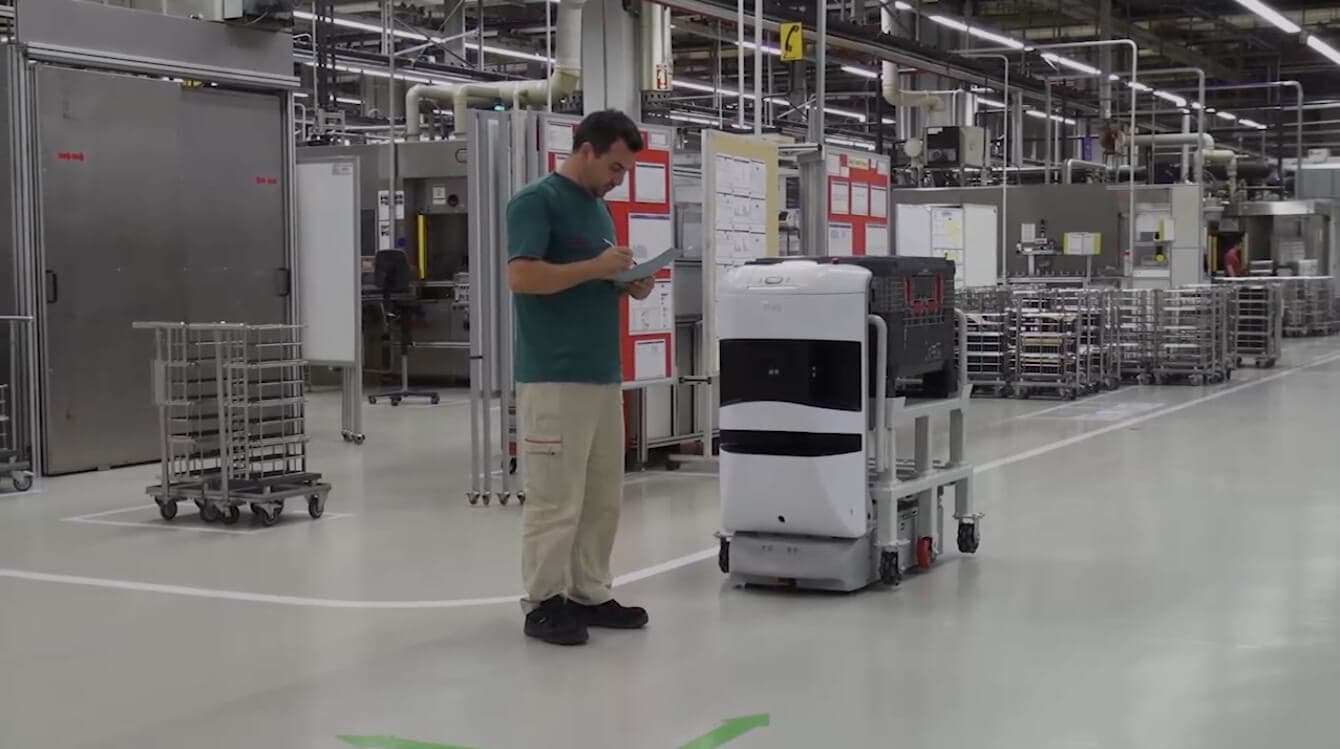

Vision-guided automation only scales if it doesn’t lock a plant into one robot brand or one integrator’s stack. RealSense integrates with the major industrial robot controllers — FANUC, ABB, KUKA, Yaskawa, and Universal Robots among them — so mixed fleets and multi-vendor lines aren’t a deployment risk. Camera modules (rather than fixed packaged units) give integrators the flexibility to embed depth sensing into custom, robot-mounted, or edge-compute hardware — pairing naturally with on-device AI compute for real-time inference at the point of work rather than round-tripping to the cloud. That flexibility extends up the stack as well: integrators have built natural-language robot programming layers on top of RealSense depth maps, letting an engineering team describe a task in plain language while the camera’s spatial data supplies the real-time understanding of objects and people that makes the instruction executable. The same open architecture supports a roadmap beyond fixed-position guidance into Autonomous Mobile Robots, where RealSense cameras double as the sensor for Visual Simultaneous Localization and Mapping (VSLAM), and intelligent pick-and-place systems that share the same depth-camera baseline across a company’s broader automation portfolio.
Built on the open-source librealsense SDK, the same depth pipeline that drives pose estimation and part recognition also feeds spatial-analysis and measurement tooling, so a single sensor and software stack supports guidance, tracking, measurement, and safety monitoring without stitching together separate systems for each.
Proven at Scale
RealSense-powered industrial automation is running in live production today, not pilots. Vision-guided robotic cells built on the RealSense D435 are deployed in more than 70 factories worldwide, with reported ROI as fast as three months and one automotive retrofit reaching return on investment in roughly three months. In live production, results include pick success rates up to 95% with sub-one-second pick cycles, a 70% improvement in dispensing cycle time, a 30% reduction in pick-and-place cycle time, and a 91% reduction in tightening rejects — with one facility reporting a 97% drop in line breakdowns after deployment. On the visibility and safety side, RealSense D455 modules paired with edge AI compute are deployed across automotive OEM and supplier lines — including a Toyota facility — mapping every process on every cycle rather than sampling a workstation at a time. For a nearly six-decade-old industrial automation builder, standardizing on RealSense’s PoE-connected D555 has cut bin-picking application delivery from weeks to days, and specific customer requests from days to hours.
